32″ DSI Multitouch coffee table construction – Part 1

For a while now I have been planning a 32″ multitouch coffee table. DSI uses a special acrylic which when lit from the edges distrubutes even illumination across the panel. Over the last few weeks I have been collecting bits and pieces and this weekend I started making the top for the table. Photos below.

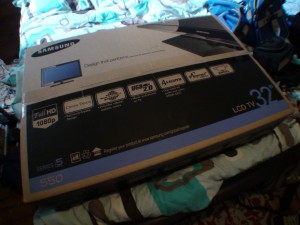

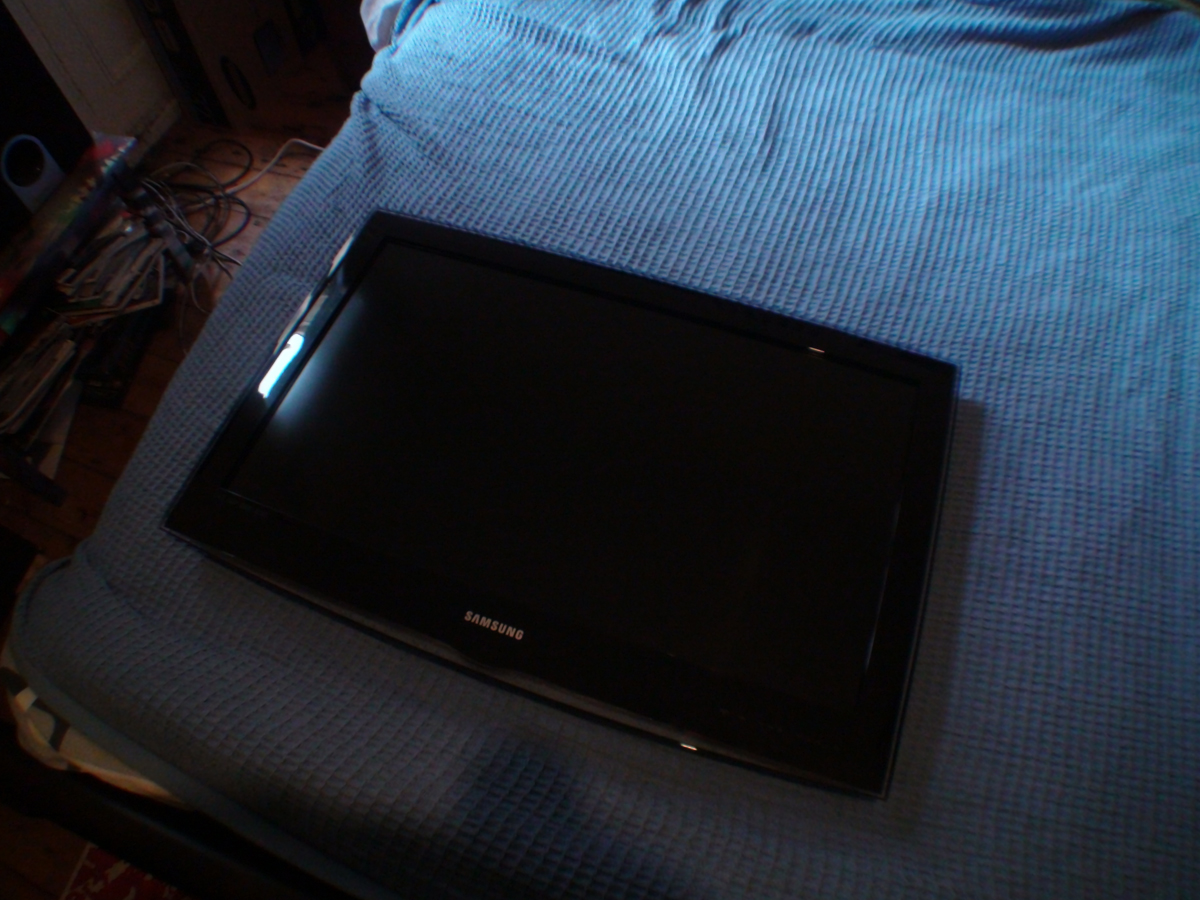

The TV I will be using – 32″ Full HD Samsung LCD

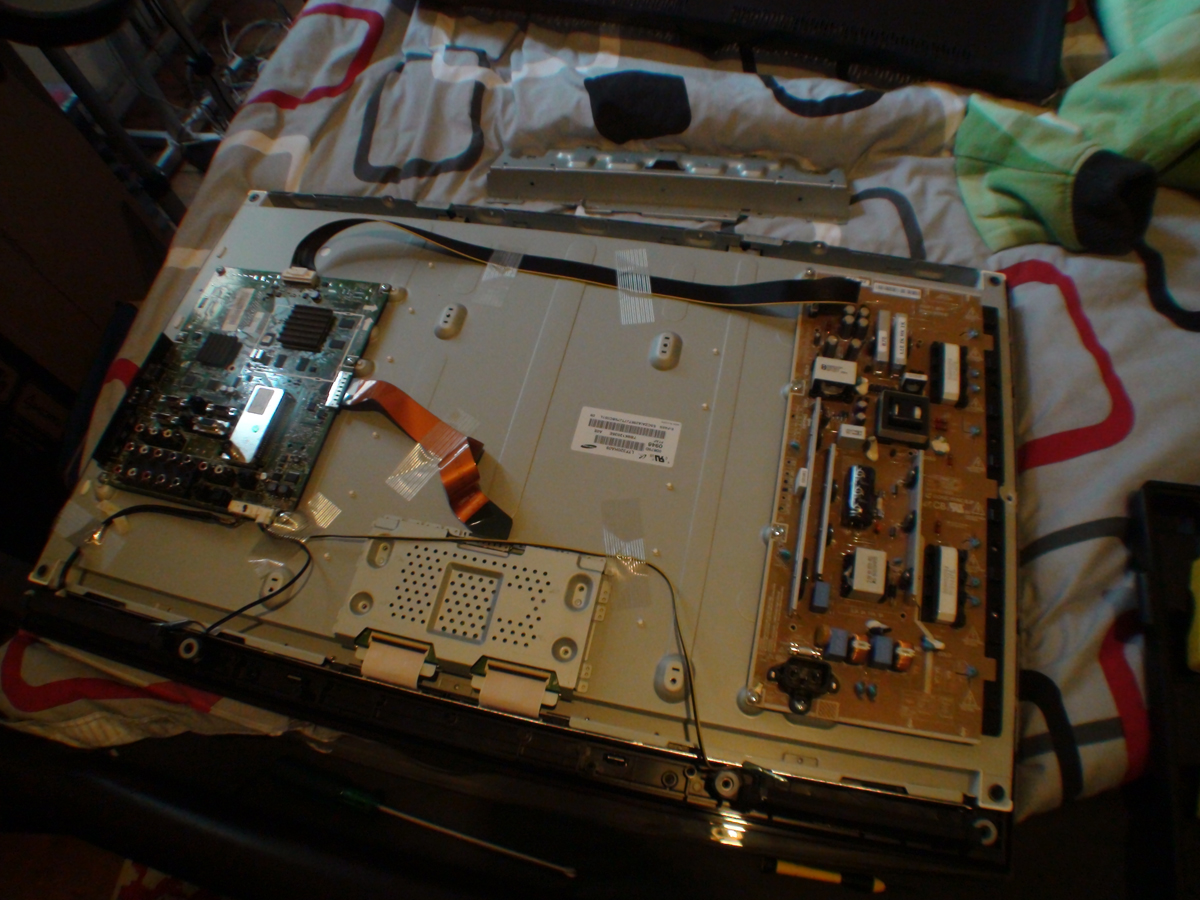

TV with the back casing removed

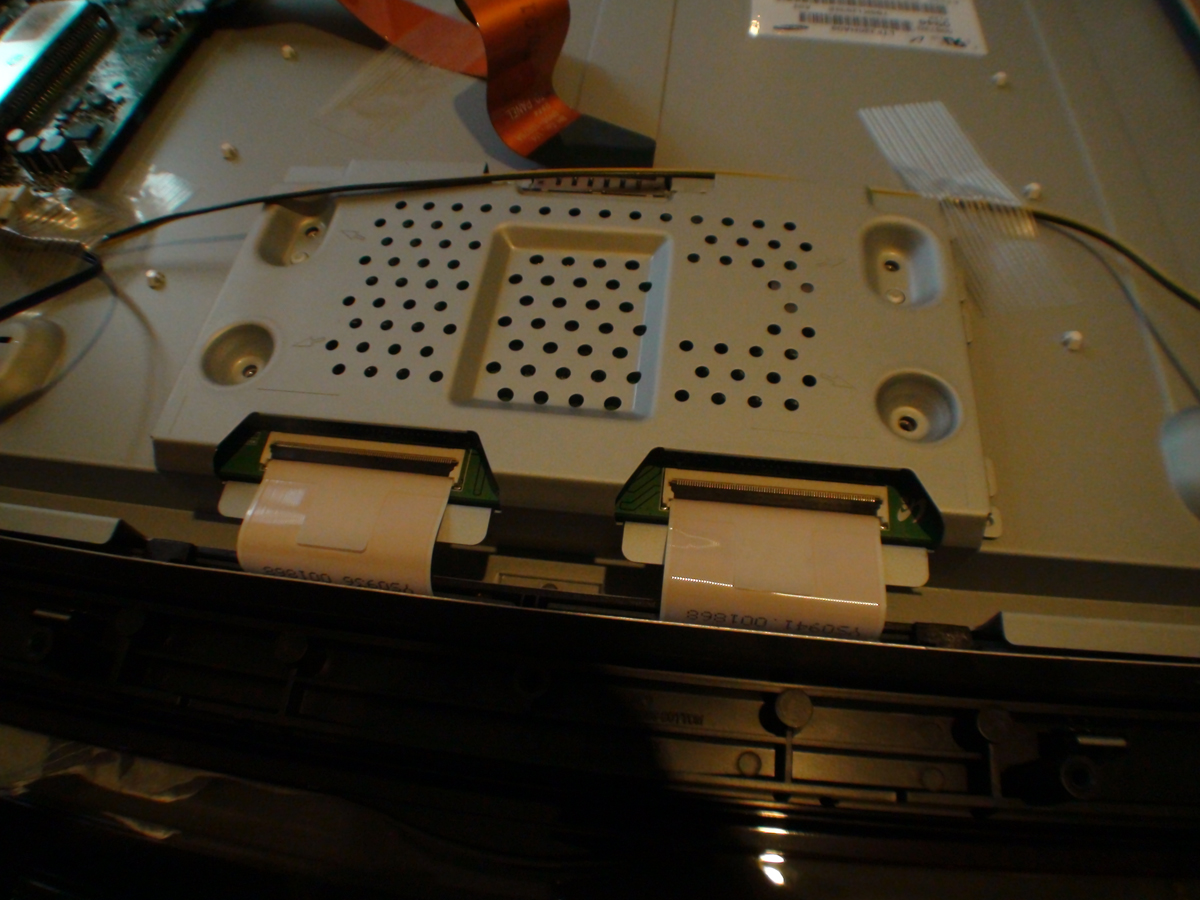

FFC cables could be a problem

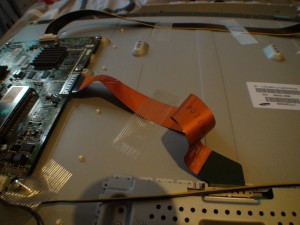

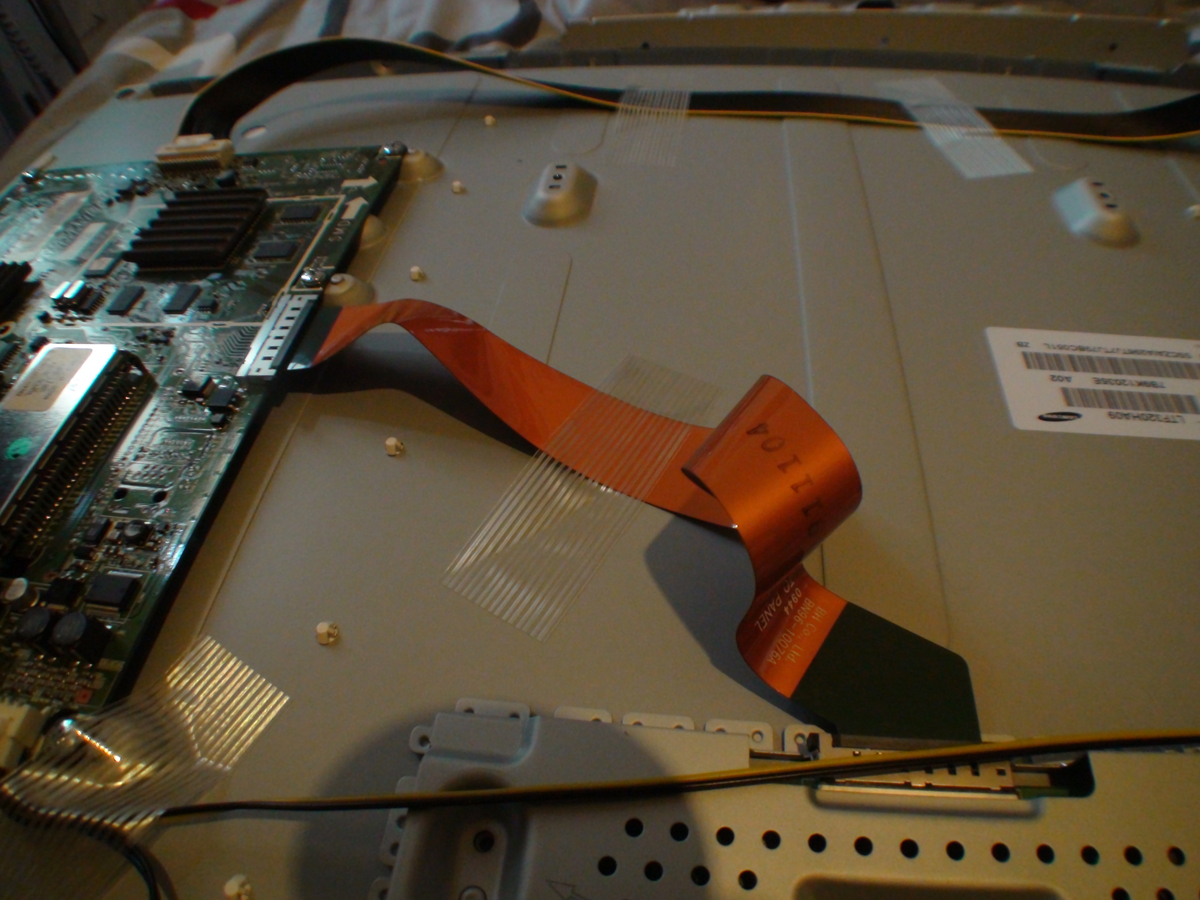

Hopefully this long ribbon cable will allow me to use the original FFC cables

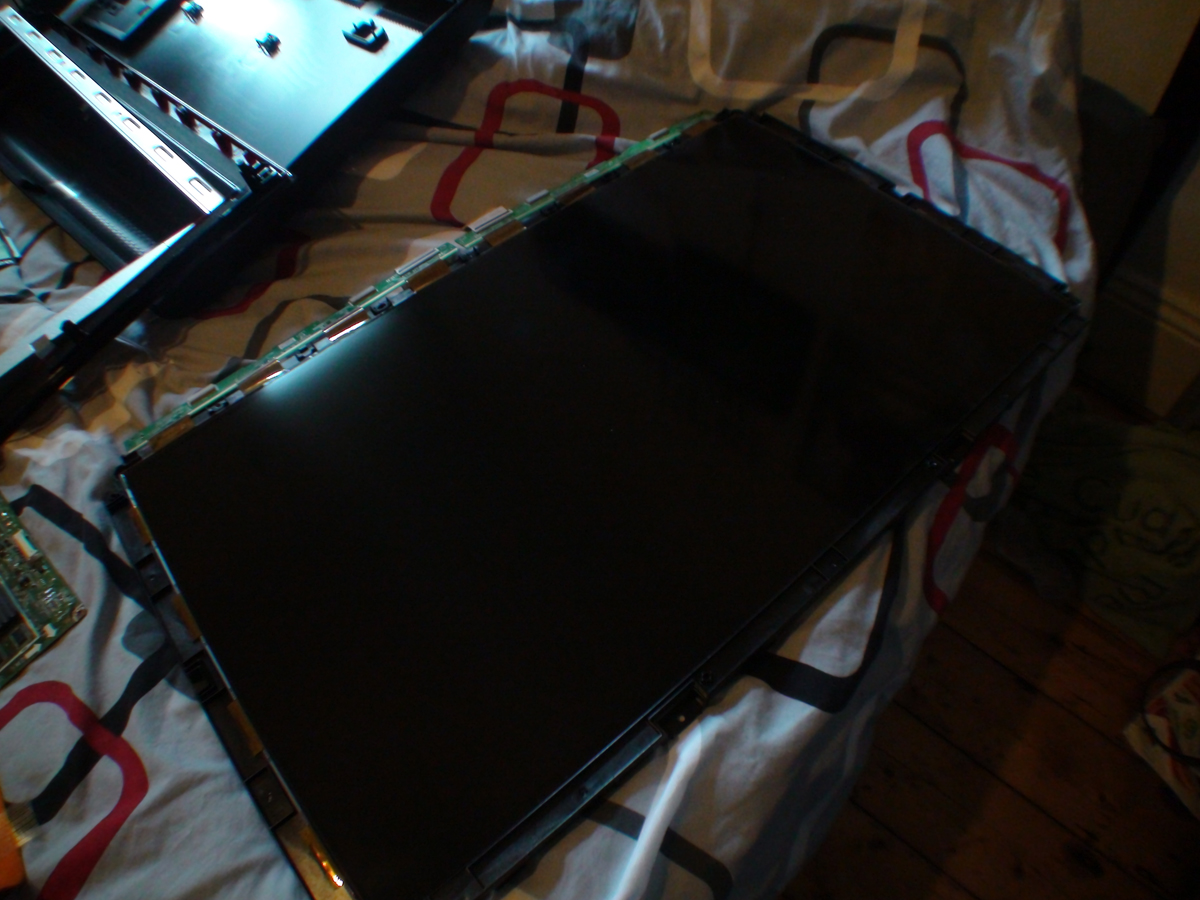

The LCD panel removed

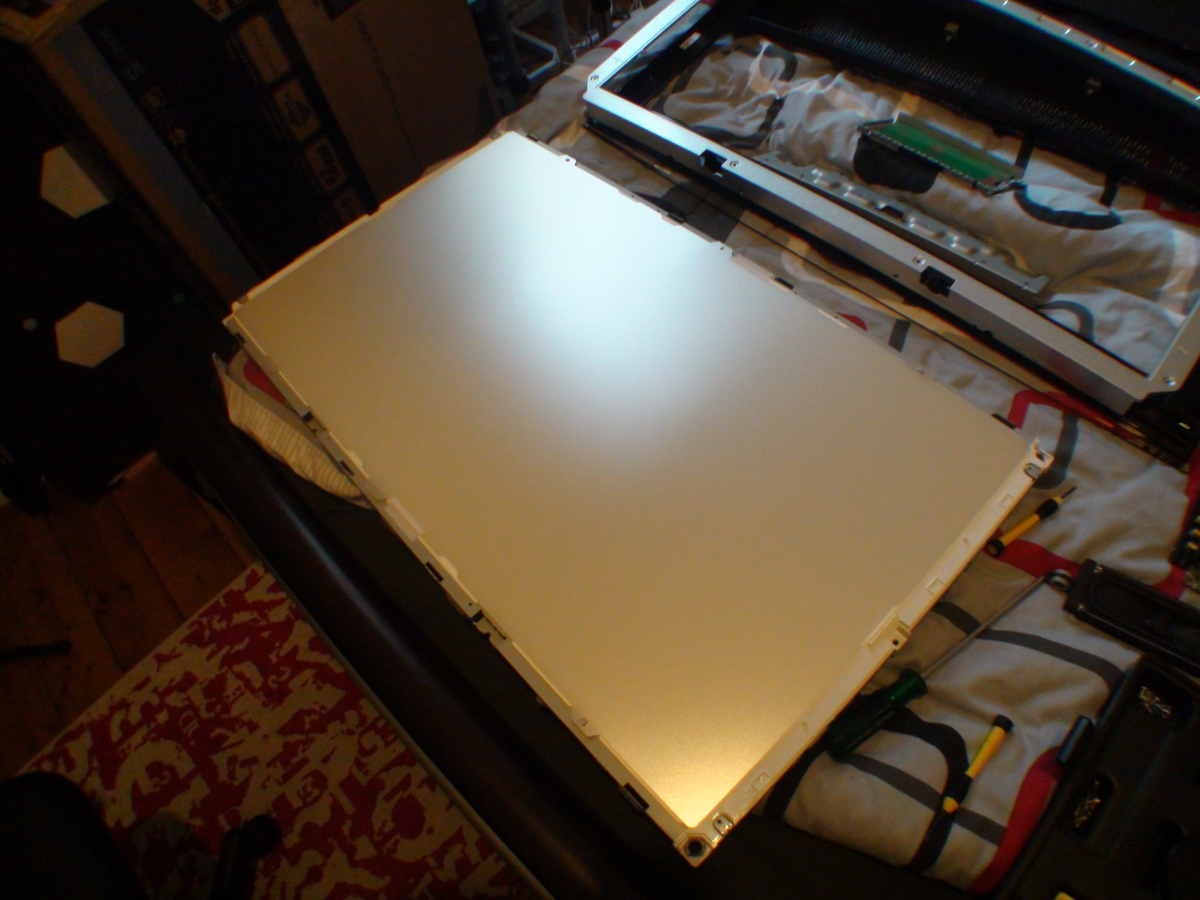

The backlight

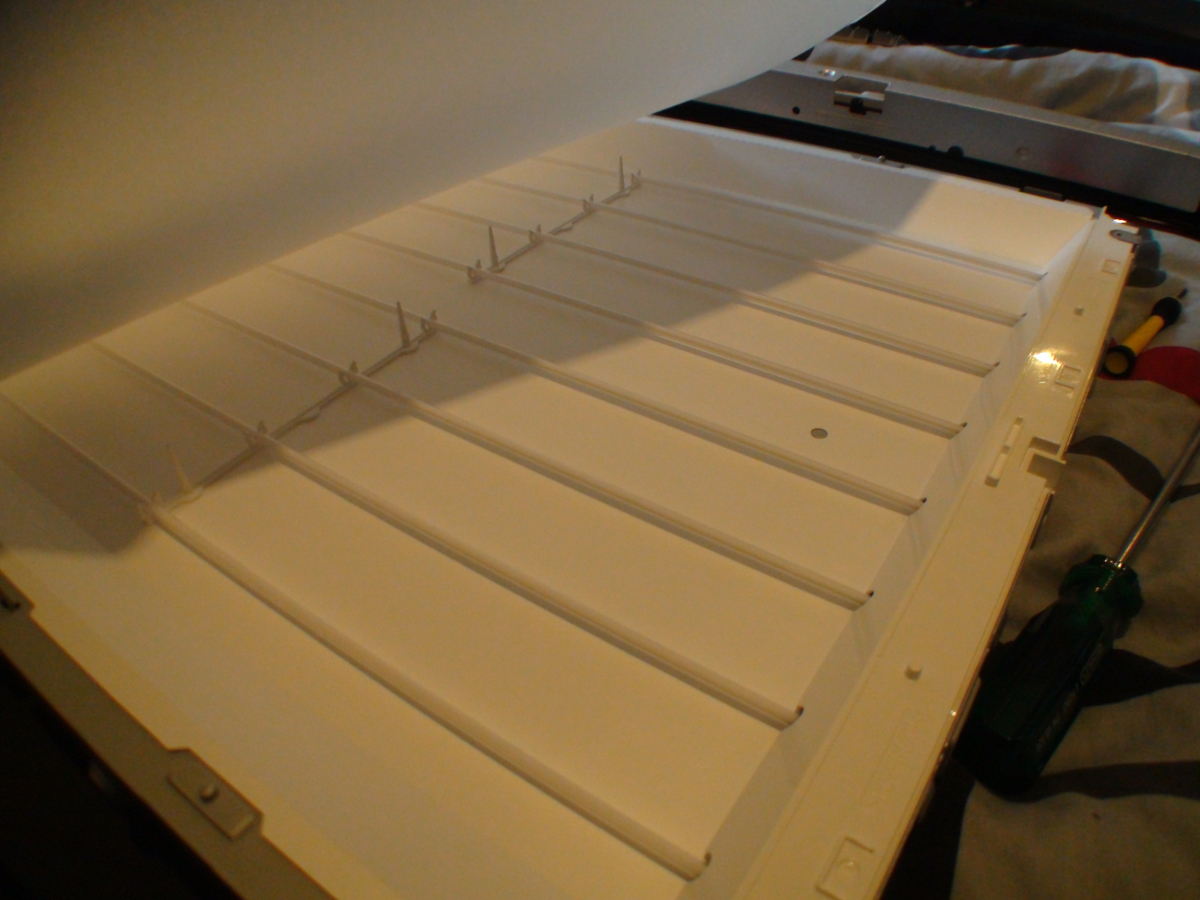

The CCFL tubes in the backlight… Looks like I will have to make a custom backlight

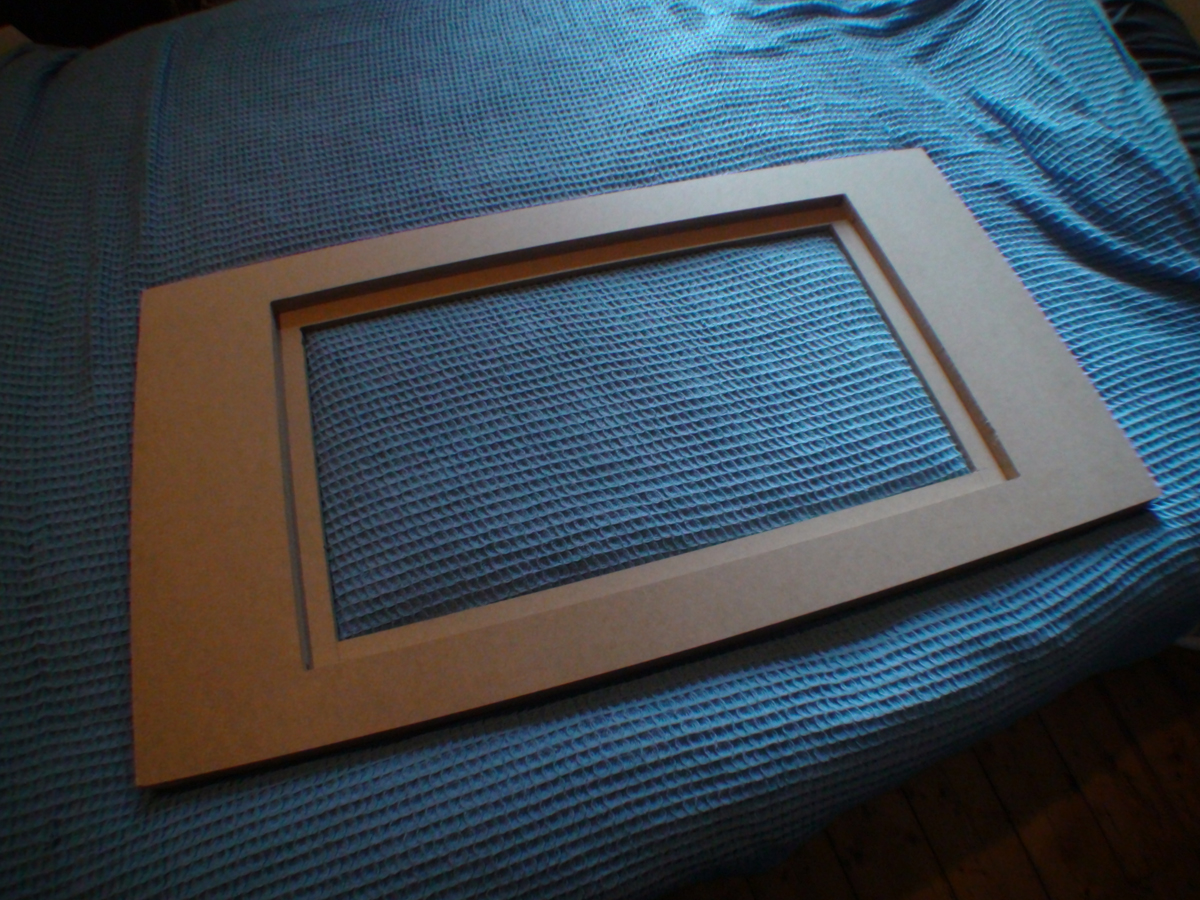

I decided to make the table top out of 3 sheets of MDF glued together

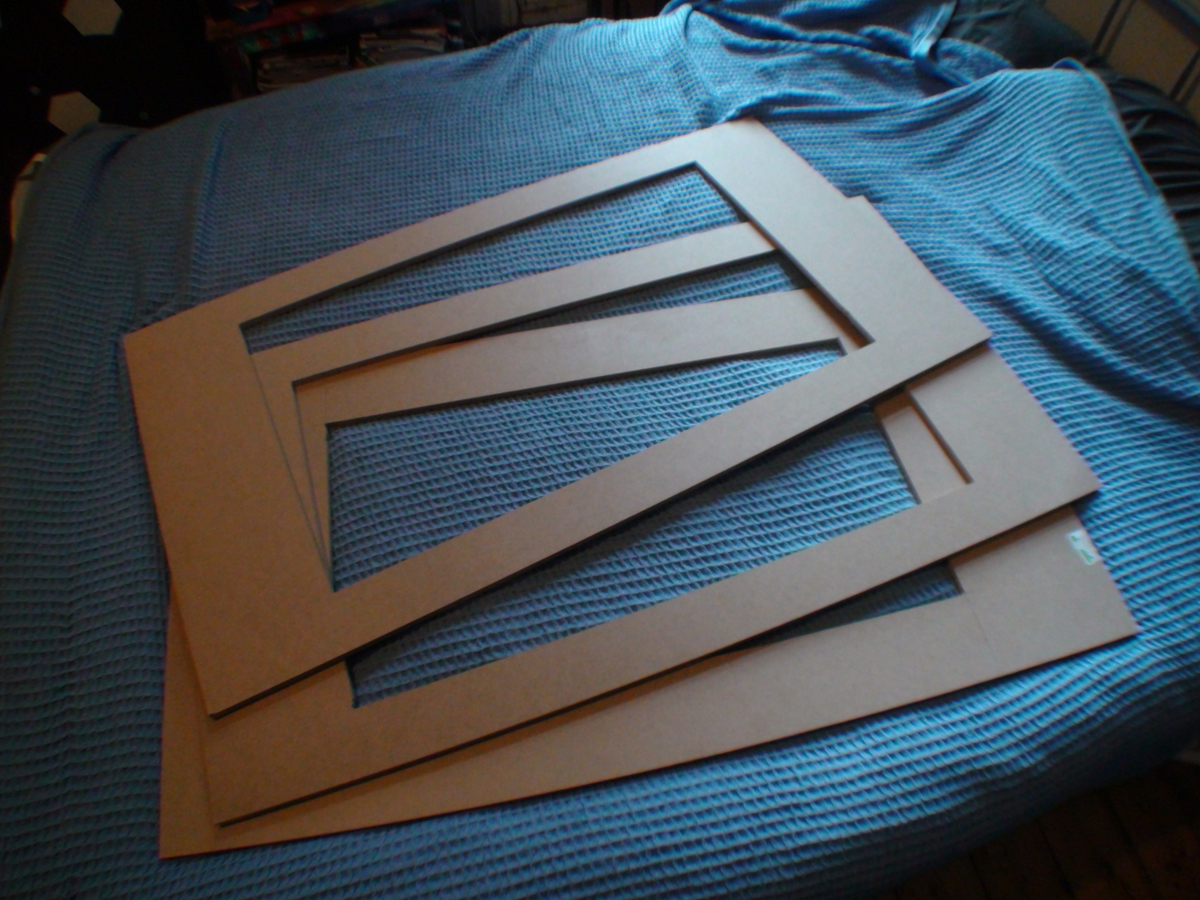

Lining the sheets up

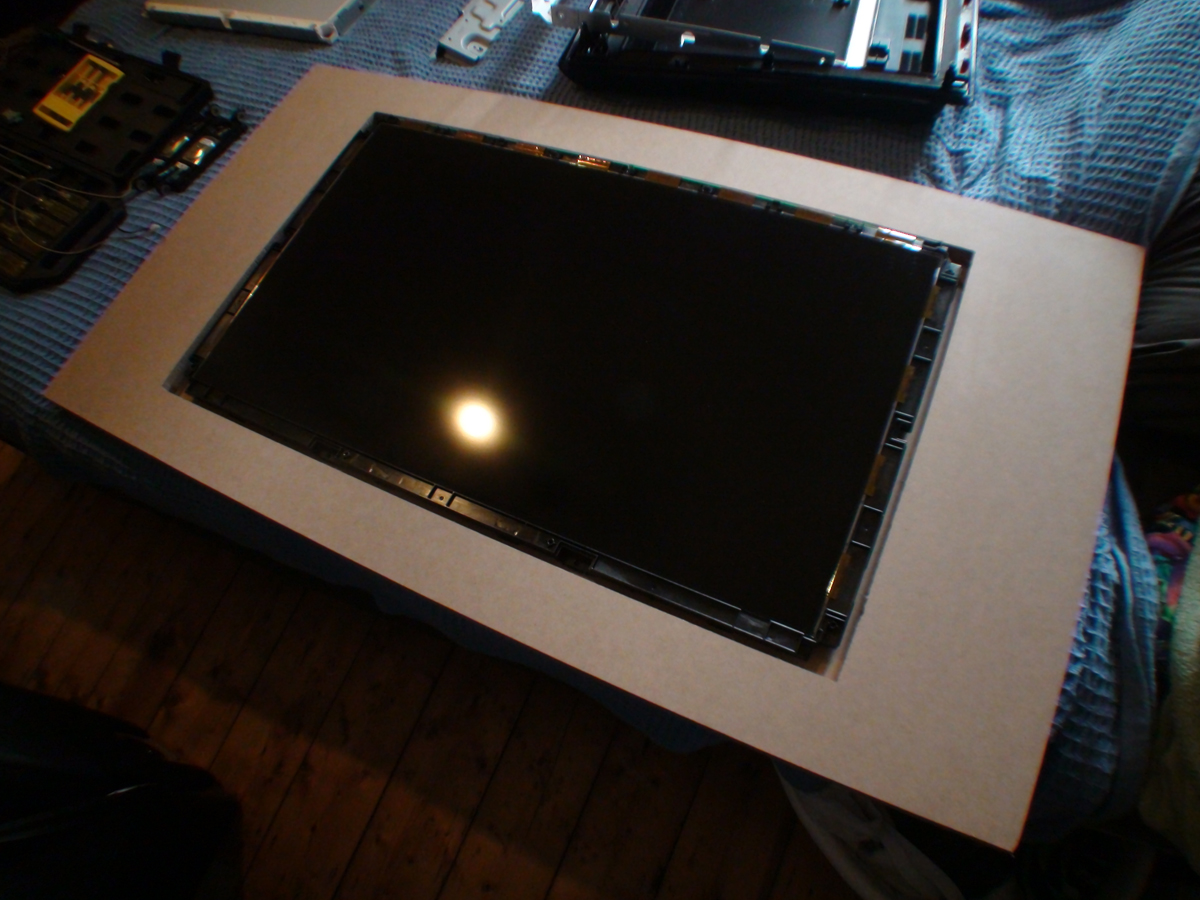

Checking that the LCD fits

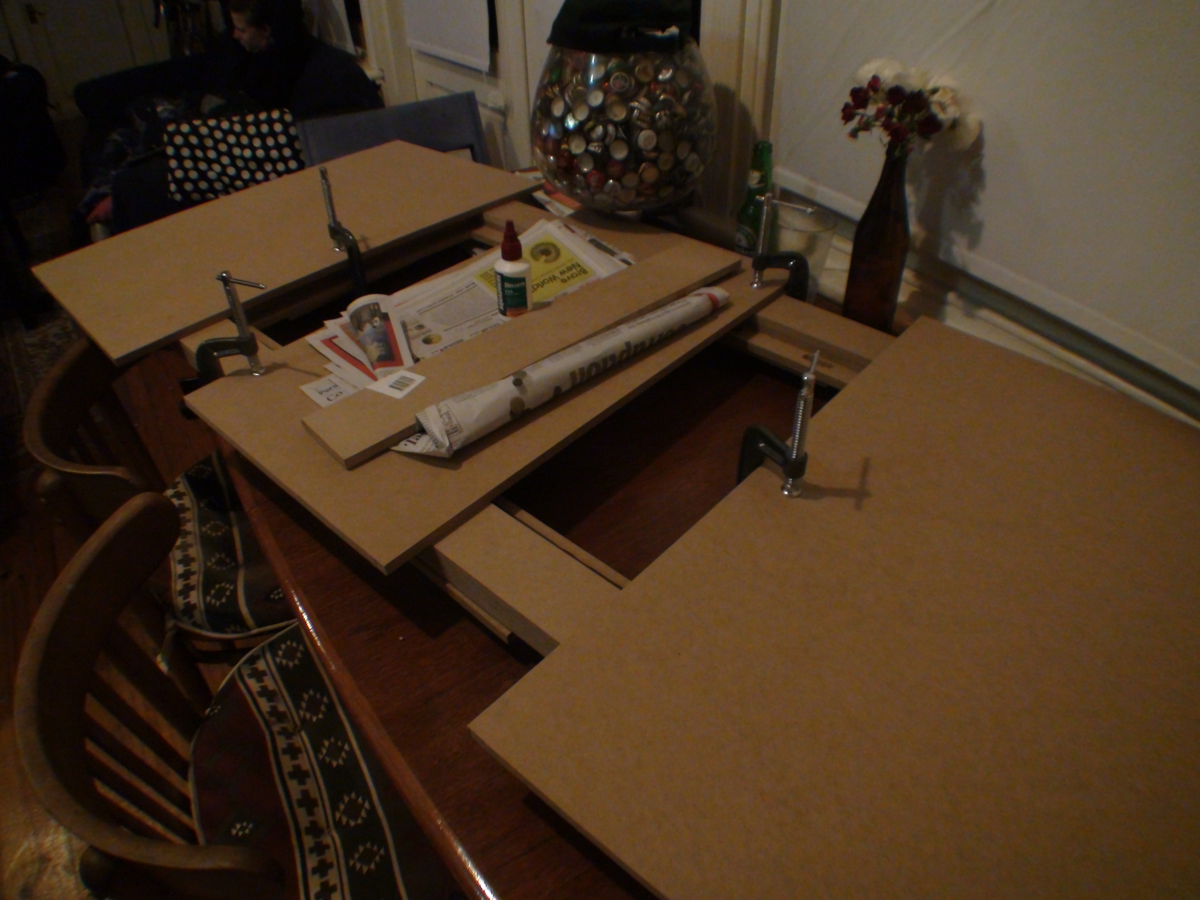

Glueing sheets togther
